| FET Type | N-Channel | |
|---|---|---|
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 120V | |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 11.4mOhm @ 75A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 83µA | |
| Gate Charge (Qg) (Max) @ Vgs | 65nC @ 10V | |
| Vgs (Max) | ±20V | |
| Input Capacitance (Ciss) (Max) @ Vds | 4310pF @ 60V | |
| Power Dissipation (Max) | 136W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |

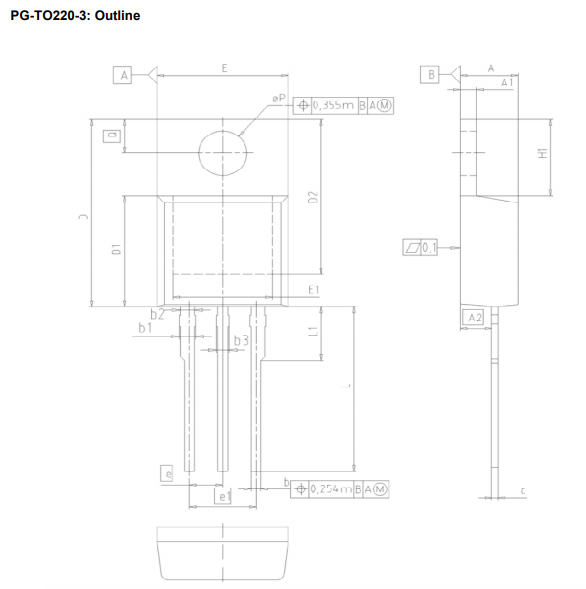

| Supplier Device Package | PG-TO220-3 | |
| Package / Case | TO-220-3 |
Features
• N-channel, normal level
• Excellent gate charge x R DS(on) product (FOM)
• Very low on-resistance R DS(on)
• 175 °C operating temperature
• Pb-free lead plating; RoHS compliant; halogen free
• Qualified according to JEDEC1) for target application
• Ideal for high-frequency switching and synchronous rectification
